PURPOSE:

The EPS Model TD-6030P Ticket Dispenser is a revenue control device that provides a "vend" signal when a ticket is issued. This "vend" signal causes a barrier gate to activate, and allow access into the facility.

II.          FEATURES & FUNCTIONS:

A.       The EPS Model TD-6030P Barcode Ticket Dispenser is designed to issue a printed date & time, barcode machine readable ticket to an entering parking patron.

B.       The EPS TD-6030P is activated by a push-button, loop detector or other triggering device.

C.       The Ticket Dispenser issues one ticket to each entering parking patron from a ticket roll.

D.       Each EPS ticket may be fully preprinted with general facility location and contract disclaimer data.

III.             PHYSICAL DESCRIPTION:

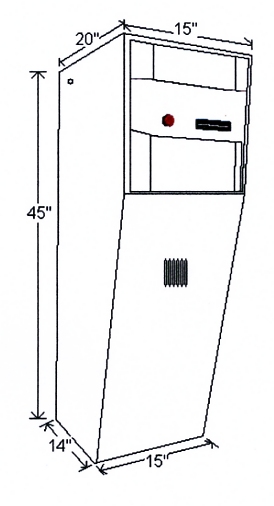

A.       The Ticket Dispenser's overall dimensions are 15" wide, by 20" deep, by 45" in height. It weighs 95 pounds without ticket roll.

B.       The electrical power requirements for the Ticket Dispenser are 115VAC at 60Hz, or 220VAC at 50Hz. An internal UL approved step-down transformer converts this current into the 24VDC required to power all of the electrical circuitry within the device.

C.       Each EPS ticket dispenser is equipped with an internal back-up battery to provide continued service even in the event of a general power outage.

D.       The Ticket Dispenser contains a micro-processor controlled mechanism which includes a date/time clock calendar.

E.        The Ticket Dispenser is constructed of heavy duty rolled steel, which is zinc plated for rust inhibition, and then powder coated with sealing rust resistant paint.  The standard color is white, but the device may be ordered with special paint colors.

F.        Each ticket is cut from the roll with an automatic self-sharpening cutter.

G.       Each ticket is printed at time of issue with the current date & time, lane location number, and a sequential ticket number.  This data is printed in both man-readable and barcode machine-readable format utilizing a non-contact thermal print cartridge.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
